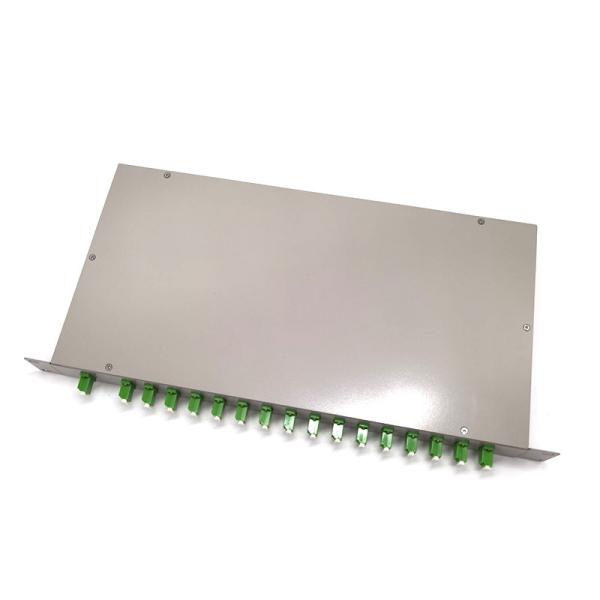

1X32 FTTH Single Mode Rack Mount Type Upc/APC PLC Splitter

1).Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.

2).It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON

networks to realize optical signal power splitting.

3).We provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.

4).All products meet GR-1209-CORE and GR-1221-CORE requirements.

Specification

Parameters	1×2	1×4	1×8	1×16	1×32	1×64
Operating Wavelength (nm)	1260~1650
Fiber Type	SMF-28e or customer specified
Insertion Loss (dB)(S/P Grade)	4.0/3.8	7.3/7.0	10.5/10.2	13.7/13.5	16.9/16.5	21.0/20.5
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.5
Return Loss (dB) (S/P Grade)	50/55	50/55	50/55	50/55	50/55	50/55
Polarization Dependent Loss(dB)	0.2	0.2	0.3	0.3	0.3	0.4
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5
Temperature Stability(-40~85 °C)(dB)	0.5	0.5	0.5	0.5	0.5	0.5
Operating Temperature (°C)	-40~85
Storage Temperature (°C)	-40~85
Packaging Dimension (mm) (L×W×H)	40×4×4	40×4×4	40×4×4	40×4×4	50×7×4	60×12×4
