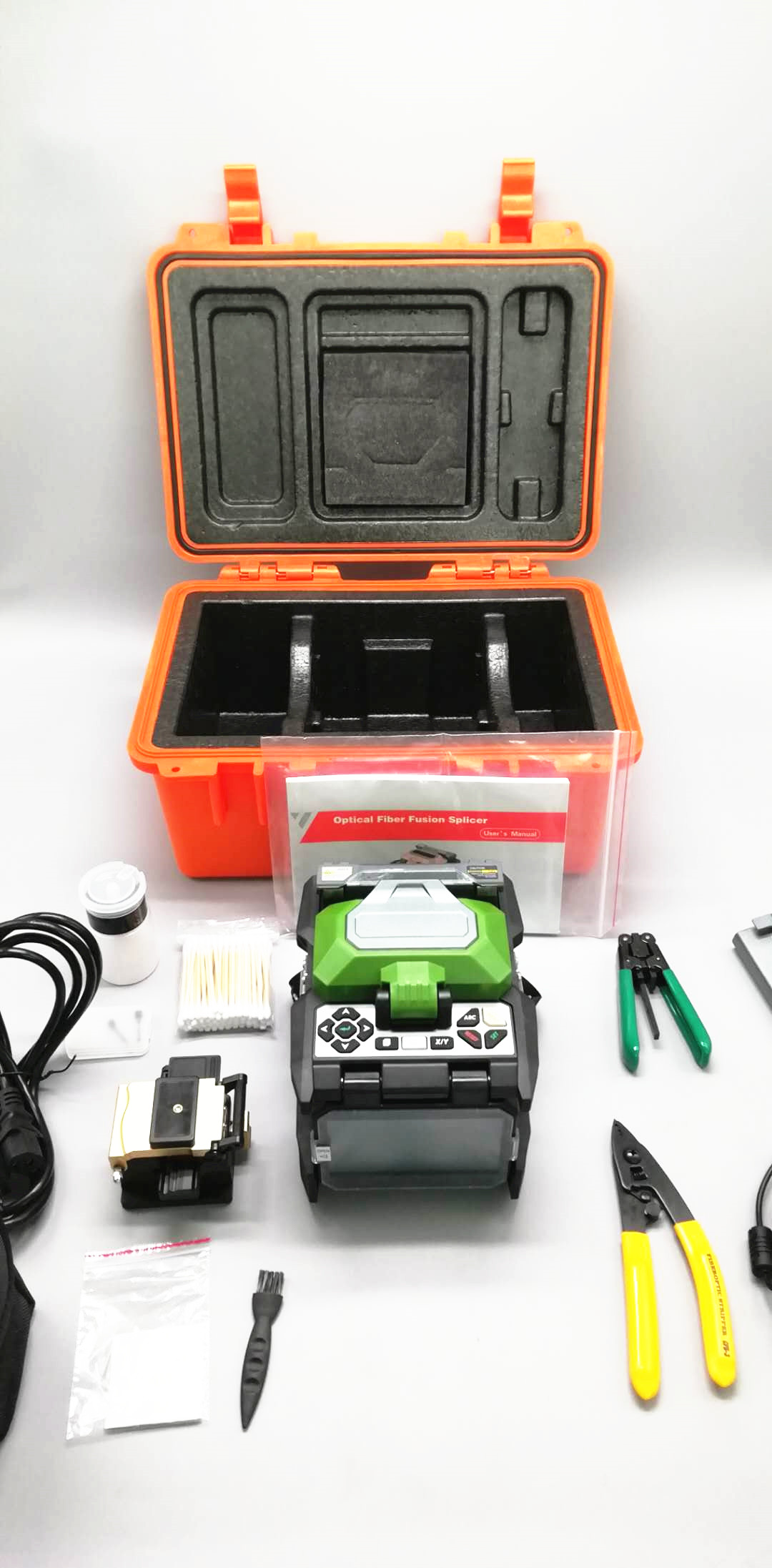

7s Fiber Optic Fusion Splicer

Fiber Optic AV6481 4 Motors Multi-Language Splicing Fusion Machine

Description:

SNT-AV6481 fiber optic fusion splicer machine implements industrial-grade CPU+FPGA structure of high-performance, completely fresh HD optical fiber microscope, imported high-speed motor and aluminum-magnesium alloy materials extensively.
This is a perfect splicer tool kit in the fiber optic fusion and maintenance.

Features:

1.Precise fiber core alignment, ultra-low fiber fusion splicing consumption
2. 7s fast fusion splicing, 18s highly efficient heating.
3. 320 times image magnification, 5mm fusion splicing for fibers of ultra-short cutting length
4. 300 groups of fusion splicing modes, 100 groups of heating modes
5. 10000 groups of fusion records, 64 images storage
6. Ceramic presser foot, ceramic V-block, all-in-one fixture
7. Dual-direction splicing, automatic splicing, intelligent pyrocondensation
8. USB and SD card interfaces, U-disk automatic software upgrade
9. Built-in modular lithium battery, supports 220 times of splicing and heating cycles

Application:

1.FTTH FTTB FTTX Network

Parameters:

Model	AV6481
Alignment method	Precise core alignment and cladding alignment
Applicable fibers	Any common optical fibers, rubber-insulated fibers and jumpers that meet requirements of ITU-TG.651~653, ITU-TG.655 and ITU-TG.657.
Optical fiber diameter	Cladding:80~150μm, coating layer: 0.1~3mm
Cutting length	5~16mm(coated optical fiber diameter≤250μm);10mm(coated optical fiber diameter:0.25~3mm)
Fusion splicing consum ption(typical value)	0.02dB(SMF);0.01dB(MMF);0.04dB(DSF);0.04dB(NZDSF)
Return loss	Better than 60dB
Fusion splicing time (typical value)	7s
Heating time (typical value)	18s
Pulling force test	1.96~2.25N
Thermal shrinkage tube	60mm, 40mm and a series of thermal shrinkage tubes
Graphical display	High-performance 4.3 inch LCD
Magnification time	320 times/88 times
Fusion splicing record	10000 groups
Battery capacity	11.1V,6400mAh,typical value of fusion splicing and thermal cycle is 220 times
Battery service life	Cycle charging times reach 300~500, can be replaced by customers
Electrode service life	Typical value is 4000 times, can be replaced by customers
Construction lighting	Built-in lights with high-brightness and wide lighting area
Working environment	Temp:-10~50ºC;hum: 0~95%RH,height above sea level:0~6000m
Operation interfaces	GUI graphical operation interfaces
External power	AC: AC100~240V,60Hz,0~1.5A;DC: DC10~15V
External port	USB / SD
Dimensions	120mm(W)×130mm(H)×154mm(D)(without rubber anti-vibration pad)
Weight	1.59kg(host engine),0.37kg(battery
