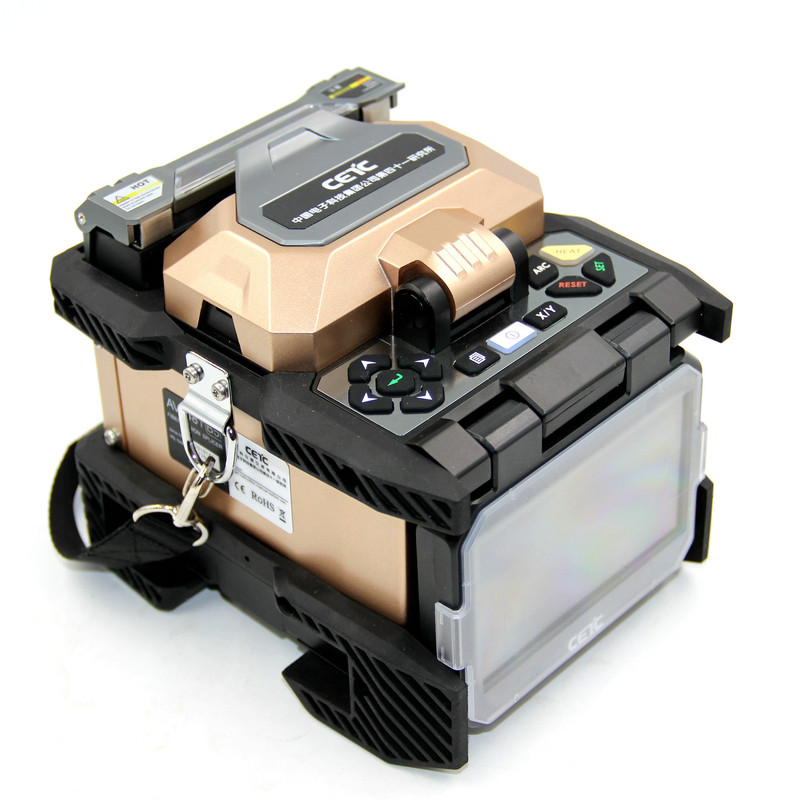

Obtaining 16 patens of invention and 58 technical innovations, a
brand-new product—AV6481 Optical Fiber Fusion Splicer is launched,
thanks to 5 years of painstaking research of 28 engineers.
AV6481 implements industrial-grade CPU+FPGA structure of
high-performance, completely fresh HD optical fiber microscope,
imported high-speed motor and aluminum-magnesium alloy materials
extensively. Compared with AV6471, our star product, AV6481 lowers
the size by 38%, the weight by 52%, the power consumption by 57%,
but improves the speed by 60%, the environment adaptability by 80%
and the reliability (MTBF) by 200%. You can get unprecedented
fusion splicing experience.
Features:
Precise fiber core alignment, ultra-low fiber fusion splicing
consumption
7s fast fusion splicing, 18s highly efficient heating.
320 times image magnification, 5mm fusion splicing for fibers of
ultra-short cutting length
300 groups of fusion splicing modes, 100 groups of heating modes
10000 groups of fusion records, 64 images storage
Ceramic presser foot, ceramic V-block, all-in-one fixture
Dual-direction splicing, automatic splicing, intelligent
pyrocondensation
USB and SD card interfaces, U-disk automatic software upgrade
Built-in modular lithium battery, supports 220 times of splicing
and heating cycles.
| | |
| | |
| Precise core alignment, Cladding alignment, Manual alignment | Cladding alignment, Manual alignment |
| Any common optical fibers, rubber-insulated fibers and jumpers that
meet requirements of ITU-TG.651~653, ITU-TG.655 and ITU-TG.657. |
| Cladding: 80~150μm, coating layer: 0.1~3mm |
| 0.02dB(SMF) ; 0.01dB(MMF) ; | 0.03dB(SMF) ; 0.02dB(MMF) ; |
0.04dB(DSF) ; 0.04dB(NZDSF) | 0.04dB(DSF) ; 0.04dB(NZDSF) |
| |
| |
| 60mm, 40mm and a series of protection sleeves |
| High-performance 4.3 inch LCD |
| 320 times/88 times, 700 times zoom | |
| |
| |
| |
| Cycle charging: 300~500 counts, can be replaced by customers |
| Typical: 4000 counts, can be replaced by customers |
| Built-in lights with high-brightness and wide lighting area |
| Temp:-10~50℃; Hum: 0~95%RH, height above sea level: 0~6000m |
| GUI (graphical user interfaces) |
| AC: 100~240V, 60Hz, 0~1.5A; DC: 10~15V |
| |
| 120mm(W) ×130mm(H) ×154mm(D)(without rubber anti-vibration pad) |
| 1.8kg (the battery not included) , 2.1kg(included the battery) | 1.65kg (the battery not included) , 1.95kg(included the battery) |
Product Description
Fiber Optic Patch Cord is important of optical network.they have
same or different connectors which are
installed on the end of fiber optic cable. The Fiber Optic Patch
Cord series comes with a comprehensive
collection of lengths and connectors to fulfill your demand for the
deployment.
Product Description
| Parametor | Unit | Value | | | |
| Connector Type | | FC/UPC,FC/APC,SC/UPC,LC/UPC,LC/APC,ST/PC,MPO |
| Fiber Type | | Multi-Mode | Single Mode |
| Insertion Loss | dB | Max.≤0.2 | Max.≤0.3 |
| Return Loss(Typ.) | dB | ≥36(no APC connector) | /PC | /UPC | /APC |
| ≥45 | ≥50 | ≥60 |
| Repeatability | dB | ≤0.1 |
| Interchangeability | dB | ≤0.2 |
| Connection Durability | times | ≥1000 |
| Operating/Storage Temperature | ℃ | -40~+80 |
FAQ
1. Are you a manufacturer or trade company?
We are the manufacturer with 13 years' history.
2. What is your fiber brand ?
Our fiber brand include : YOFC, Corning, Fiber Home, J-fiber, POFC
3. What is your main product ?
Our main product is Fiber Optic Connector, Fiber Optic Adapter,
Fiber Optic Attenuator, Fiber Optic Patch Cord and Fiber Terminal
Box, except that, we have very good prices for part of fiber tools!
4. How can we place order?
After we made agreement on the product parameters, we will make
proforma invoice for your confirmation, when we got your advance
payment (deposit) we will arrange the production and delivery. If
you have your own ship forwarder, we will use your ship forwarder
to delivery goods; if you don't have ship forwarder, we can ship
them by our agent shipping company which can offer very competitive
freight cost!
5. What is the quality for your product?
All of our product are with high quality, we promise 100% recall
policy if they are unqualified, we can write it into our contract!
6. How do you arrange the shipping?
Solution A: SUNET take care of everything. Clients only need to
collect cargo in local or wait cargo delivery to their office.
There are two types of shipping methods available, by sea and by
air (Express courier - FedEx/ DHL/UPS/TNT/EMS, we can ship them
according to your express account or ship them by our agent
company, the delivery time is about four days).
Solution B: Clients assign a Qingdao logistic company to do the
shipping, SUNET follow the company's instructions and finish the
shipping.
7. How can you guarantee the delivery time?
To avoid the delay, we have built a complete and professional
procedure system from production to the deliver and have rich
experience. We can regulate the penalty clause in the contract for
the late delay.
8. What's your best price for your passive fiber optic product?
Based on the quality of our products and the quantity of your
estimated. We would quote the great best matching price all the
time.
9. What is your quality control for your fiber optic product ?
1. Source Guarantee. We have our own long-term cooperation raw
material suppliers. All the products are ISO certificated and
satisfy exporting quality level demand.
2. Quality Test. It runs through the whole process from the raw
material to finished product, such as package, surface, physical
test, optical test. They are 100% tested.
3. Optical Test. Our products are strictly tested in accordance
with IEC and ITU standard.
4. We have 30% spot test by Quality Assurance Department after the
products finished.
