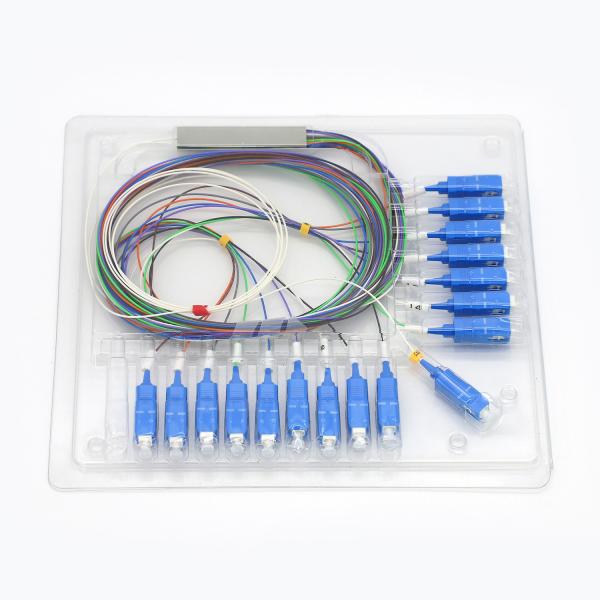

1x16 Steel Tube PVC G657A 0.9mm 1m SC/UPC PLC Splitter Fiber Optic
Fiber Optic PLC Splitter Description
PLC Splitter also named Planar Lightwave Circuit Splitters or
balanced optical splitter, this optical splitter are Single Mode
Splitters with an even split ratio from one input fiber to multiple
output fibers. The 1x16 optical splitter with 1 input and 16 output
fibers with an even split ratio across all fibers regardless of
input wavelength. some of its most notable characteristics, its
compact size, the low insertion loss and the excellent uniformity
offered, giving this splitter model a high degree of reliability,
The Balanced 1x16 optical splitter was application in FTTh / FTTx
networks and can also be used in other applications such as passive
optical networks, fibrotic sensors, local area networks and test
instruments.
SUNET provide 1xN (1x2, 1x4, 1x8, 1x16, 1x32, 1x64) and 2xN (2x2,
2x4, 2x8, 2x16, 2x32, 2x64) split ratio fiber optic splitter. All
of our PLC splitter can be customized, the most common of package
have mini steel tube package, ABS box package and Cassette box
package, the mini steel tube package PLC splitter input and output
pigtail diameter is 0.9mm, default pigtail length is 1meter, the
pigtail length also can be customized according customer's request.
The most common connector is SC connector (SC/APC or SC/UPC).
Fiber Optic PLC Splitter Features
1. Low Insertion loss and Low PDL
2. Uniform power splitting
3. High reliability
4. Excellent environmental stability
5. Compact size and various package
Fiber Optic PLC Splitter Applications
1. FTTx Systems
2. Digital, hybrid and AM-Video systems
3. LAN,WAN and Metro Networks
4. CATV systems
5. Other applications in fiber
Fiber Optic PLC Splitter Specification
Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
Operating Wavelength (nm) | 1260~1650 |
Fiber Type | G657A1 A2 SMF-28e or customer specified |
Insertion Loss (dB)(S/P Grade) | 4.0/3.8 | 7.3/7.0 | 10.5/10.2 | 13.7/13.5 | 16.9/16.5 | 21.0/20.5 |
Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 |
Return Loss (dB) (S/P Grade) | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 |
Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 |
Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
Temperature Stability(-40~85 °C)(dB) |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
Operating Temperature (°C) | -40~85 |
Storage Temperature (°C) | -40~85 |
Packaging Dimension (mm) (L×W×H) |
40×4×4 |
40×4×4 |
40×4×4 |
40×4×4 |
50×7×4 |
60×12×4 |
Notes: 1. Specified without connectors. 2. Add an additional 0.2dB
loss per connector
