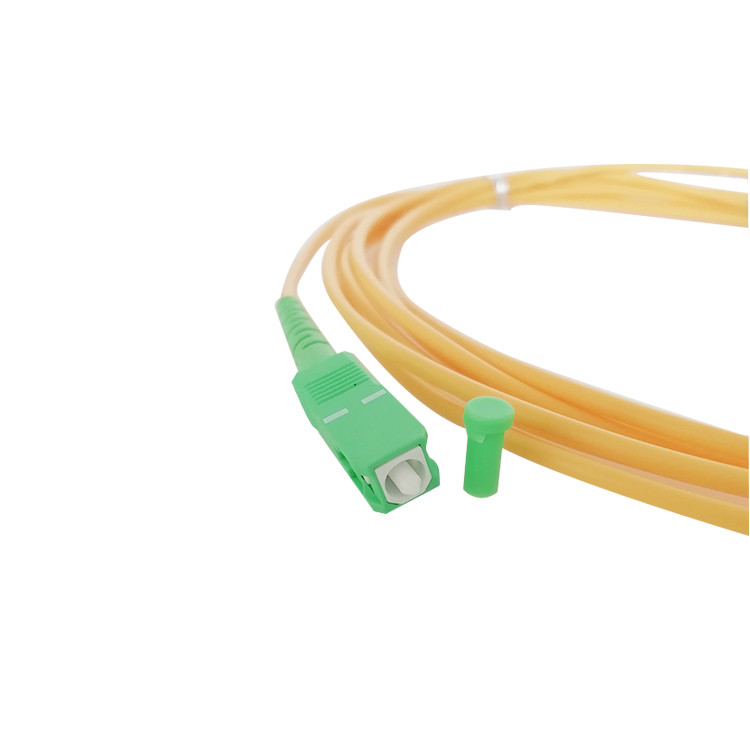

Sc Apc To Sc Apc Single Mode Simplex Fiber Optic Patch Cord
Patch Cord Description
Fiber Optic Patch cords are ultra reliable components featuring low
insertion loss and return loss. They come with your choice of
simplex or duplex cable configuration. Extensive range of fiber
patch cables are terminated with state-of-the-art connectors and
available in any combination of ST, SC, LC and MTRJ with PC, UPC or
APC polish types to meet your standard or custom configurations.
Patch Cord Features
Low insertion loss and high return loss.
Good exchange ability.
Support 10 Gigabit data transmitting rates.
MM cables type.
FC, LC, SC, MU, ST, MTRJ, E2000, MPO…optional.
Polishing: PC, UPC and APC.
Meets IEC standard.
Patch Cord Applications
Optical Distribution Frame
Computer Networks
Fiber Optic Communication Systems
Optical Access Networks
Local Area Network
Fiber Optic Sensors
Patch Cord Order Information
Cable Material: PVC, LSZH (LSOH), OFNR
Cable Diameter: 3.0mm, 2.0mm, 0.9mm, 3.0*2.0mm, 5.0*2.0mm..
Fiber Type: SM 9/125um, MM 50/125um, MM 62.5/125um, 10G
OM3(50/125um)
Polishing: PC, UPC, APC.
Length: 0.2m, 0.3m,.... 100m
Patch Cord Technical specifications
Parameters | Standard Fiber Cable Assemblies |
Fiber Type | SM(G.652/G.657) | MM(OM1/OM2/OM3/OM4/OM5) |
Jacket Materials | LSZH/OFNR/PVC |
Connector Type | FC/SC/LC/ST/MU/DIN/SMA/E2000/MT-RJ/MPO/MTP |
Ferrule Materials | Ceramic |
Testing Wavelengths | 1310±30/1550±30nm | 850±30/1300±30nm |
Insertion Loss (dB) | ≤0.25dB | ≤0.3dB |
TIA/EIA-455-107 | (PC/UPC/APC) | (PC/UPC) |
Return Loss (dB) | ≥50dB(PC/UPC) | ≥40dB(PC/UPC) |
TIA/EIA-455-107 | ≥60dB(APC) |
Exchange-ability | ≤0.2dB |
Cable Assemblies | Pigtail/Simplex/Duplex/Fan-out Patch cord |
Operating Temperature (ºC) | -10 ~ +70 |
Storage Temperature (ºC) | -40 ~ +85 |
Package | 1 pieces/bag |
All values specified are with connectors |
