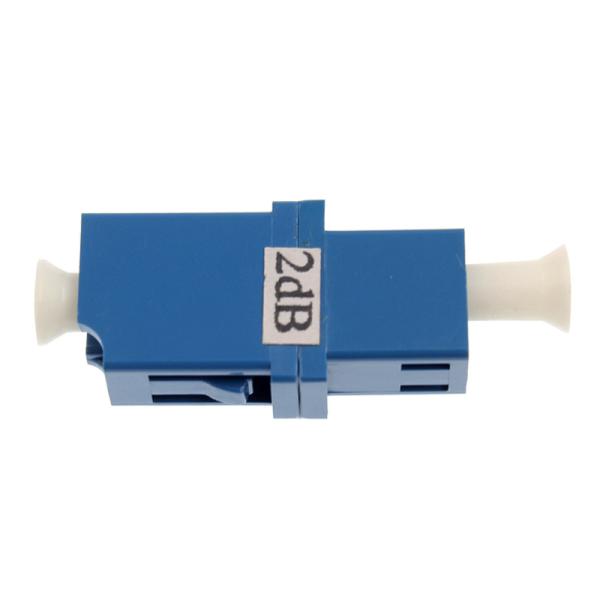

    Female To Female Fiber Optic Attenuator LC/UPC Fixed Flange Attenuator

    Ask Lasest Price
    Brand Name : SUNET
    Model Number : SUNET-19
    Certification : ISO9001
    Price : USD 1-2per piece
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 20000 per month
    Delivery Time : 5-8 days
    • Product Details
    • Company Profile

    Female To Female Fiber Optic Attenuator LC/UPC Fixed Flange Attenuator

    Female To Female Fiber Optic Attenuator LC/UPC Fixed Flange Attenuator

    Describtion

    The fixed fiber attenuator is made from standard high precision dust blue. It is used in various optical fiber transmission lines with high attenuation precision and stable and reliable performance. Performance characteristics are independent of wavelength variations and enable dual functions of the adapter and attenuator. Attenuation accuracy, high additional loss, low-application optical distribution frame fiber network system, low-speed fiber transmission system. Fixed fiber attenuators can be divided into flange type and yin and yang type according to type, and can be divided into SC, ST, FC, LC, etc. according to the model.


    Feature


    Attenuated fiber for excellent performance
    Simple, compact and easy to install,
    Stable performance, high reliability, suitable for 1260 ~ 1650nm broadband
    High reflection loss and low insertion loss
    Different specifications can be customized

    APPLICATION

    1.Testing equipment 2.Fiber optical CATV 3.Fiber optical sensor 4.Fiber optical telecommunication system

    Item
    Parameter
    Model
    Fixed, Female&Male, In-line, Variable
    Operating Wavelength
    SM:1310/1550nm
    SM:1310/1550nm
    Attenuation Range
    1~30dB
    Return Loss
    APC: ≥60db
    UPC: ≥55dB
    PC:≥50dB
    Attenuation Tolerance
    ≤+/-0.5(1-10dB) or ≤+/-1.0(11-30dB)
    Polarization Dependent Loss
    ≤0.1dB
    Operation Temperature
    -40°C~+60°C
    Storage Temperature
    -45°C~+ 85°C
    Humidity
    95%RH


    Specification

    Female To Female Fiber Optic Attenuator LC/UPC Fixed Flange AttenuatorFemale To Female Fiber Optic Attenuator LC/UPC Fixed Flange AttenuatorFemale To Female Fiber Optic Attenuator LC/UPC Fixed Flange AttenuatorFemale To Female Fiber Optic Attenuator LC/UPC Fixed Flange Attenuator
