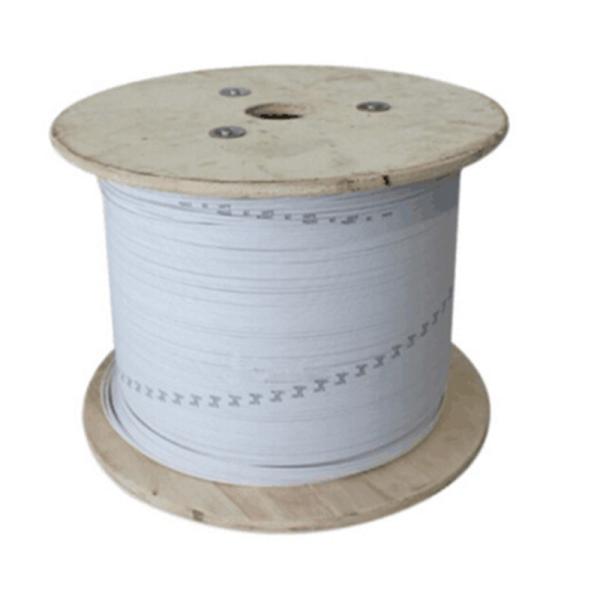

White KFRP 12 Cores G657A FTTH Drop Fiber Optic Cable

    Buy cheap White KFRP 12 Cores G657A FTTH Drop Fiber Optic Cable from wholesalers

    Buy cheap White KFRP 12 Cores G657A FTTH Drop Fiber Optic Cable from wholesalers
    • Buy cheap White KFRP 12 Cores G657A FTTH Drop Fiber Optic Cable from wholesalers
    • Buy cheap White KFRP 12 Cores G657A FTTH Drop Fiber Optic Cable from wholesalers

    White KFRP 12 Cores G657A FTTH Drop Fiber Optic Cable

    Ask Lasest Price
    Brand Name : SUNET/OEM
    Model Number : SNT-FDC
    Certification : ISO9001 ISO14001
    Price : USD 20-30/km
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100000 Piece/Pieces per Month
    Delivery Time : 3-8 work days
    • Product Details
    • Company Profile

    White KFRP 12 Cores G657A FTTH Drop Fiber Optic Cable

    1 2 4 8 12 Cores G657A FTTH Indoor Fiber Optic Cable


    Description:


    FTTH fiber optic cable is Fiber to Home, which used for linking the equipment and components in the fiber optic network. The fibers is position between two parallel FRP/steel wire . Then it is self-supported by diameter 1.2mm steel wire. Last this cable is completed with black or white LSZH sheath.


    Features:


    Small diameter and light weight, water-resistant, soft and bendable, easy to deploy and maintenance.

    Meet the requirement of thunder-proof, anti-rodent or waterproof.

    Good to use for fiber to the home last mile solution.


    Application:


    Outdoor aerial application.

    Used in the FTTH projects.

    High speed optical routes in building.


    ​Parameters:


    Fiber TypeAttenuationOverfilled launch BandwidthEffective Modal Bandwidth10GB/S Ethernet link lengthMin Bending Radius
    Conditions1310/1550nm850/1300nm850/1300nm850nm850nm
    UnitdB/kmdB/kmMHZ.kmMHZ.kmmmm
    G652D0.36/0.2216
    G657A10.36/0.2210
    G657A20.36/0.227.5
    50/1253.0/1.0≥500/50030
    62.2/1253.0/1.0≥200/50030
    OM33.0/1.0≥1500/500≥2000≥30030
    OM43.0/1.0≥3500/500≥4700≥55030
    B1-OM33.0/1.0≥1500/500≥2000≥3007.5
    B1-OM43.0/1.0≥3500/500≥4700≥5507.5
    Fiber CountCable Diameter
    (mm)
    Cable Weight
    (kg/km)
    Tensile Strength
    (N/100mm)
    Crush Resistance
    (N/100mm)
    Short TermLong TermShort TermLong Term
    1-45.2*2.01860030022001000
    6-123.0*9.02712006001100500
