    1*16 ABS BOX Fiber Optic PLC Splitter 1 TO 128 WAYS With SC/UPC Connectors

    Ask Lasest Price
    Brand Name : SUNET
    Model Number : SUNET-11
    Certification : ISO14001/ISO900
    Price : USD 5-6 per piece
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 20000 per month
    Delivery Time : 5-8 days
    • Product Details
    • Company Profile

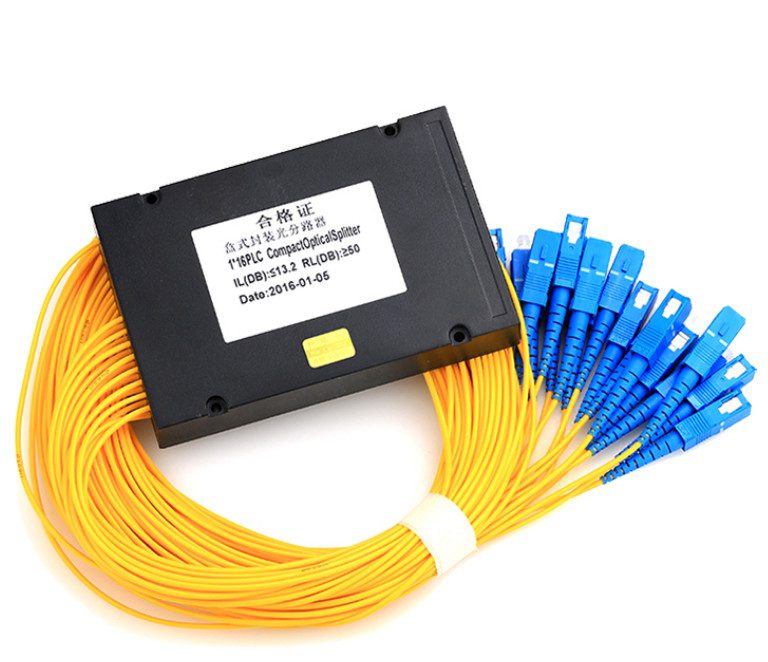

    1*16 ABS BOX Fiber Optic PLC Splitter 1 TO 128 WAYS With SC/UPC Connectors

    1*4/1*8 /1*16 ABS BOX Fiber optic PLC splitter 1 TO 128 WAYS With SC/UPC Connectors


    Describtion


    ABS Box PLC splitter is based on a quartz substrate integrated waveguide optical power distribution device, has the advantages of small volume, the working wavelength range, high reliability, good light uniformity etc characteristic, is especially suitable for passive optical network ( EPON, BPON, GPON etc ) connected local and terminal equipment and realize the optical signal devide.


    Feature

    ·Low Insertion Loss

    · Low Polarization Dependent Loss

    · Local Area Networks (LAN)

    · Wide Operation Wavelength

    · Test Equipment


    Application

    ♦ Active dvice termination
    Telecommunication networks

    ♦ CATV links

    Data Communication

    Test Equipment

    Wide Area Networks(WANs)

    ParameterSpecification
    Operating Wavelength (nm)1260 ~ 1650
    Type1x41x81x162x42x82x161x322x321x64
    Insertion Loss (dB) Max<7.3<10.4<13.5<7.6<11.2<14.5<16.2<18.2<20.5
    Uniformity (dB) Max<0.8<1.0<1.5<1.0<1.5<2.0<2.0<2.5<2.5
    PDL(dB)Max<0.2<0.2<0.3<0.3<0.3<0.4<0.3<0.4<0.4
    Directivity (dB) Min55
    Return Loss (dB) Min55(50)
    Operating Temperature (°C)-5~ +75
    Storage Temperature (°C)-40 ~ +85
    Fiber length1m or custom length
    Fiber TypeCorning SMF-28e fiber
    Connector TypeCustom specified
    Power Handling (mW)300
