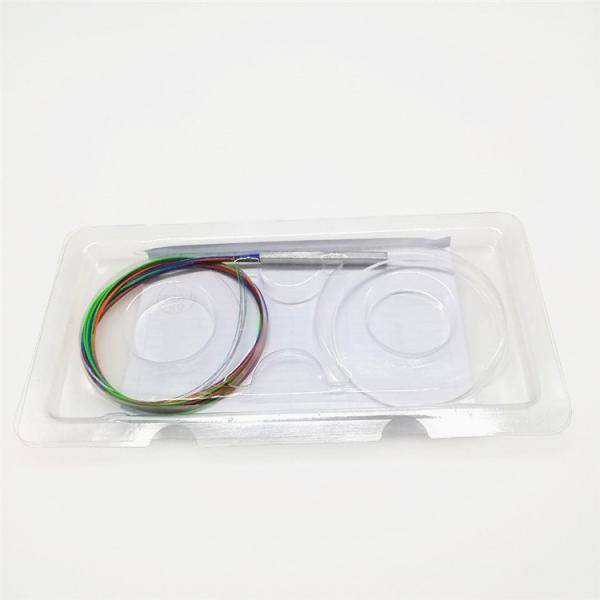

Box Packing 0.9mm 1mtr Fiber Optic PLC Splitter
PLC Splitter Description
Box Packing 0.9mm 1mtr Fiber Optic PLC Splitter is widely used in optical communication industry(FTTH/FTTB/FTTX). Planar lightwave circuit (PLC) splitter is a type of optical power
management device that is fabricated using silica optical waveguide
technology. It features small size, high reliability, wide
operating wavelength range and good channel-to-channel uniformity,
and is widely used in PON networks to realize optical signal power
splitting. SUNET provides whole series of 1xN and 2xN splitter
products that are tailored for specific applications.
PLC Splitter Features
Low Insertion loss and Low PDL
Uniform power splitting
High reliability
Excellent environmental stability
Compact size and various package
PLC Splitter Applications
FTTx Systems
Digital, hybrid and AM-Video systems
LAN,WAN and Metro Networks
CATV systems
Other applictaions in fiber optic systems
PLC Splitter Types
Bare Fiber type PLC splitter
Steel Tube type PLC splitter
ABS Box Type PLC Splitter
Cassette type PLC splitter Module
Rack type PLC splitter Module
Tray assembly PLC splitter Module
PLC Splitter Specifications
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
| Fiber Type | SMF-28e or customer specified |
| Insertion Loss (dB)(S/P Grade) | 4.0/3.8 | 7.3/7.0 | 10.5/10.2 | 13.7/13.5 | 16.9/16.5 | 21.0/20.5 |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 |
| Return Loss (dB) (S/P Grade) | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
| Temperature Stability(-40~85 ℃)(dB) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (℃) | -40~85 |
| Storage Temperature (℃) | -40~85 |
