Triple Window ABS Box ISO14001 Optical Fibre Coupler

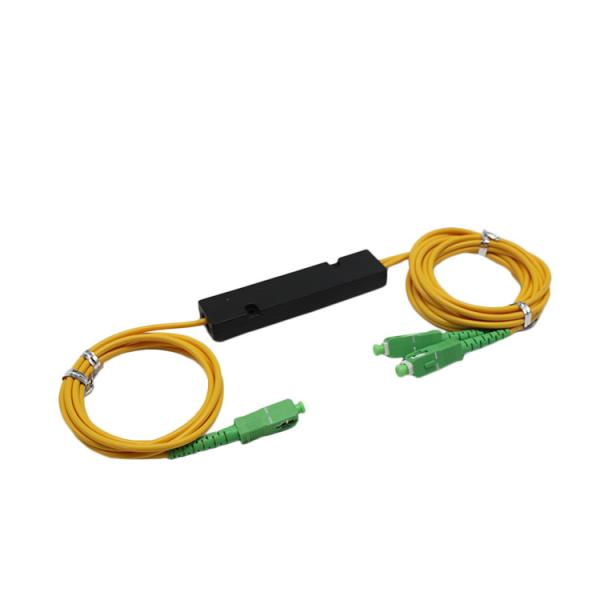

Sc Apc 1X2 Tripple Window Fiber Optic ABS Box Type Fbt Coupler

Description:

Fiber Optic FBT splitter is a type of optical power management device that is fabricated using Fused Biconical Tape Technology.
It features small size, high reliability ,cheap cost and good channel-to-channel uniformity,and is widely used in PON networks to realize optical signal power splitting.
SUNET provides whole series of 1xN and 2xN spliiter products that are tailored for specific applications .All products meet GR-1209-CORE and GR-1221-CORE.
SUNET offers both tree and star type inline couplers /splitters.They provide a reliable solution to split/combine signals.The splitting ratio ranges from 1x2 to 1x32 ports for tree couplers ,and from 2x2 to 2x32 for star couplers. Available in single,dual and triple wavelength windows(1310/1490/1550nm)

Features:

1.Low Excess loss
2.Low PDL
3.Environmentally stable
4.Good Thermal Stability

Application:

1.Long-haul Telecommunications
2.CATV Systems & Fiber Optic Sensors
3.Local Area Network

Parameters:

Parameter		Specification
Operating Wavelength	nm	Single Window1(1310,1550) Dual Window2(1310/1550) Triple Window3(1310/1550/1490)
(1×N)		N=3	N=4	N=5	N=8	N=16	N=24	N=32	N=64
Fiber Type		Corning SMF-28e
IL(MAX)	dB	5.41/5.62	7.01/7.22	7.81/8.02	10.01/10.42	13.51/13.92	15.01/15.42	17.31/17.52	21.01/21.52
Uniformity	dB	0.51/0.62	0.51/0.62	0.61/0.82	0.81/1.02	1.11/1.32	1.21/1.52	1.31/1.52	2.11/2.52
Return Loss	dB	≥55
Directivity	dB	≥55
PDL	dB	<0.20	<0.20	<0.30	<0.30	<0.40	<0.50	<0.50	<0.50
