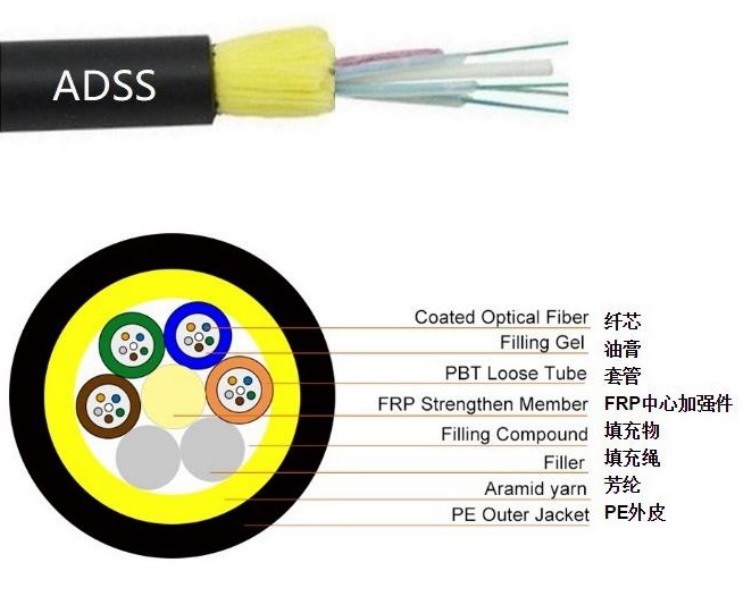

ADSS 48 Core Fibra Optica Outdoor 4 6 8 10 12 24 48 96 144 Core SM Single Mode G657A

Describtion

ADSS (All-Dielectric Self-Supporting) cable is ideal forinstallation in distribution as well as transmission environments, even when live-line installations are required.

Feature

Can be installed without shutting offthe power.
ExcellentAT performance. The maximum inductive at the operating point ofAT jacket can reach 25kV.
Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.
Large span lengths and the largest span is over 200m.
Good performance oftensile strength and temperature.
The design life span is over 30 years.

Application

♦ Active dvice termination
♦ Telecommunication networks

♦ CATV links

♦ Data Communication

♦ Test Equipment

♦ Wide Area Networks(WANs)

Specification

2-96 fibers	98-288fibers
Max. Tension (N)	Short-term	1500	3000
Max. Tension (N)	Long-term	600	1000
Max. Crushing Resistance (N/100mm2)		1000
Temperature range(°C)		-40°C-- +70°C
Min. Bending Radius(mm)	Install	20D
Min. Bending Radius(mm)	Static	10D

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0 dB/km
	@1300nm			≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelengthλcc		≤1260nm	≤1480nm
