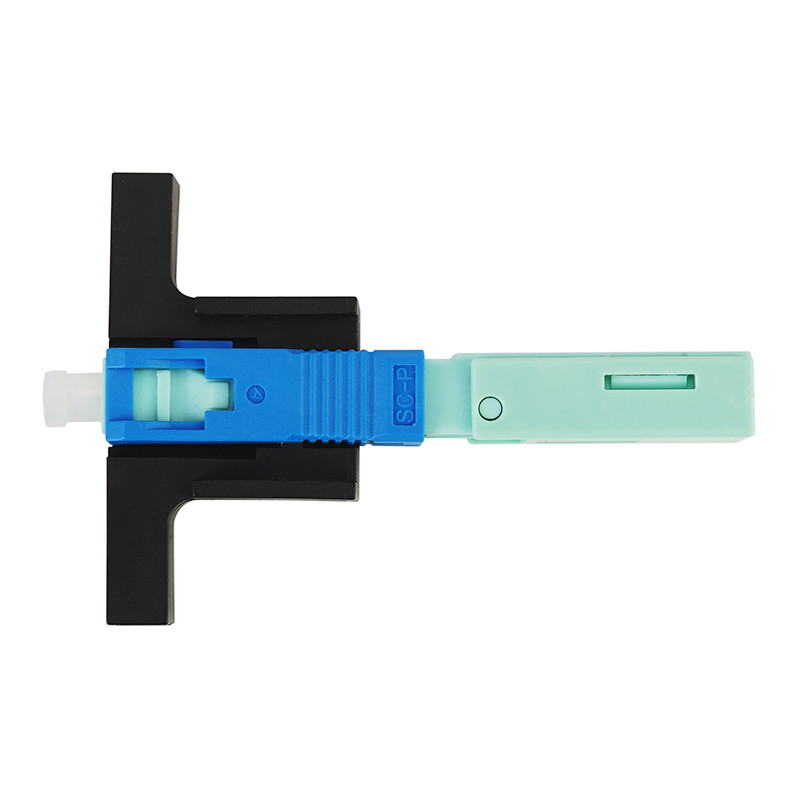

Ftth Fiber Optical K2 Quick Adapter Equipment Indoor Duplex St Fc
Sc Lc Upc Flat Cable Fast Connector
Describtion
Fiber Optic Fast Connector make fiber terminations quick, easy and
reliable. These fiber optic connectors offer terminations without
any hassles and require no epoxy, no polishing, no splicing, no
heating and can achieve similar excellent transmission parameters
as standard polishing and splicing technology.
Mechanical Field-Mountable Fiber Optic Connector (FMC) is designed
to simple the connection without fusion splicing machine. This
connector is quick assembly which requires only normal fiber
preparation tools: cable stripping tool and fiber cleaver. The
connector adopts Fiber Pre-Embedded Tech with superior ceramic
ferrule and aluminum alloy V-groove. Also, transparent design of
the side cover which allows visual inspection.
Feature
1. Linkage structure design, when docking with equipment and
joints, the reserved
2. microbend remains unchanged;
3. Double V-slot structure design, fiber optic docking is stable
and reliable;
4. The core structure: the use of normally closed elastic fastening
method,
5. excellent technical indicators;
6. Applicable optical cable: 2.0mm×3.0mm & 2.0mm×1.6mm butterfly
cable;
7. Easy to operate, fast construction, high installation success
rate,
8. long life cycle, easy maintenance in the later period.
Application
1. Applied to open FTTH fiber terminal
2. Used in closure boxes, cabinets, teminal boxes, etc.
3. Recovery and maintenance in fiber breakage and other accidents
4. LAN, WAN, data and video transmission
5. Construction and maintenance of fiber access for end users
6. Fiber entry for mobile base stations
Specification
| Characteristic | SM , MM |
| Connector type | FC/SC/ST/LC/MU/MT-RJ/ESCON/E2000 |
| Diameter(mm) | 0.9,2.0,3.0 |
| Polishing grade | SM PC | MM PC | UPC | APC |
| Insertion loss | ≤0.3dB | ≤0.4dB | ≤0.2dB | ≤0.3dB |
| Return loss | ≥40dB | ≥50dB | ≥65dB |
| Interchangeability | ≤0.2dB |
| Repeatability | ≤0.2dB |
| Operation temperature | -40~+80 |
