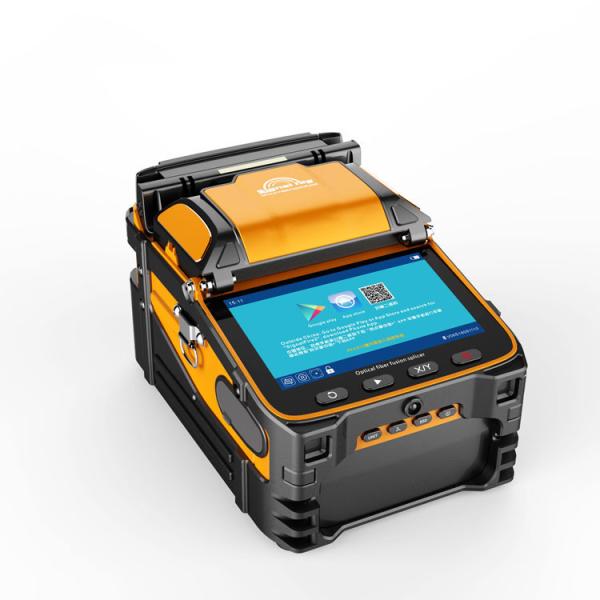

    FTTH Tool Fiber Machine 6 Motor Ai-9 Fusion Splicer 3mm Coating Layer

    Ask Lasest Price
    Brand Name : Sunet/OEM
    Model Number : SUNET-12
    Certification : RoHS, RoHS
    Price : USD 500-680 / SETS
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 20000 per month
    Delivery Time : 5-8 days
    • Product Details
    • Company Profile

    FTTH Tool Fiber Machine 6 Motor Ai-9 Fusion Splicer 3mm Coating Layer

    FTTH Tool Fiber Machine 6motor Ai-9 Fusion Splicer


    Describtion


    Fusion Splicer AI-9 use the latest core alignment technology with auto focus and six motors, it is a new generation of fiber fusion splicer. It is fully qualified with 100 km trunk construction, FTTH project, security monitoring and other fiber cable splicing projects. The machine uses industrial quad-core CPU, fast response, is currently one of the fastest fiber splicing machine in the market; with 5-inch 800X480 high-resolution screen, the operation is simple and intuitively; and up to 300 times focus magnifications, making it is very easy to observe the fiber with naked eyes. 6 seconds speed core alignment splicing, 15 seconds heating, the working efficiency increased by 50% compared to ordinary splicing machines.


    Feature

    Industrial quad-core chip CPU

    Six motors

    5 seconds fast splicing

    15 seconds fast heating

    10 languages to switch freel


    Application

    ♦ Active dvice termination
    Telecommunication networks

    ♦ CATV links

    Data Communication

    Test Equipment

    Wide Area Networks(WANs)

    Specification

    Model
    ai-9
    Alignment method
    Precise core alignment and cladding alignment
    Applicable fibers
    Any common optical fibers, rubber-insulated fibers and jumpers that meet
    requirements of ITU-TG.651~653, ITU-TG.655 and ITU-TG.657.
    Optical fiber diameter
    Cladding:80~150μm, coating layer: 0.1~3mm
    Cutting length
    5~16mm(coated optical fiber diameter≤250μm);10mm(coated optical
    fiber diameter:0.25~3mm)
    Fusion splicing consum
    ption(typical value)
    0.02dB(SMF);0.01dB(MMF);0.04dB(DSF);0.04dB(NZDSF)
    Return loss
    Better than 60dB
    Fusion splicing time
    (typical value)
    7s
    Heating time (typical
    value)
    18s
    Pulling force test
    1.96~2.25N
    Thermal shrinkage tube
    60mm, 40mm and a series of thermal shrinkage tubes
    Graphical display
    High-performance 4.3 inch LCD
    Magnification time
    320 times/88 times
    Fusion splicing record
    10000 groups
    Battery capacity
    11.1V,6400mAh,typical value of fusion splicing and thermal cycle is 220
    times
    Battery service life
    Cycle charging times reach 300~500, can be replaced by customers
    Electrode service life
    Typical value is 4000 times, can be replaced by customers
    Construction lighting
    Built-in lights with high-brightness and wide lighting area
    Working environment
    Temp:-10~50℃;hum: 0~95%RH,height above sea level:0~6000m
    Operation interfaces
    GUI graphical operation interfaces
    External power
    AC: AC100~240V,60Hz,0~1.5A;DC: DC10~15V
    External port
    USB / SD
    Dimensions
    120mm(W)×130mm(H)×154mm(D)(without rubber anti-vibration pad)
    Weight
    1.59kg(host engine),0.37kg(battery)

    FTTH Tool Fiber Machine 6 Motor Ai-9 Fusion Splicer 3mm Coating LayerFTTH Tool Fiber Machine 6 Motor Ai-9 Fusion Splicer 3mm Coating LayerFTTH Tool Fiber Machine 6 Motor Ai-9 Fusion Splicer 3mm Coating LayerFTTH Tool Fiber Machine 6 Motor Ai-9 Fusion Splicer 3mm Coating Layer
