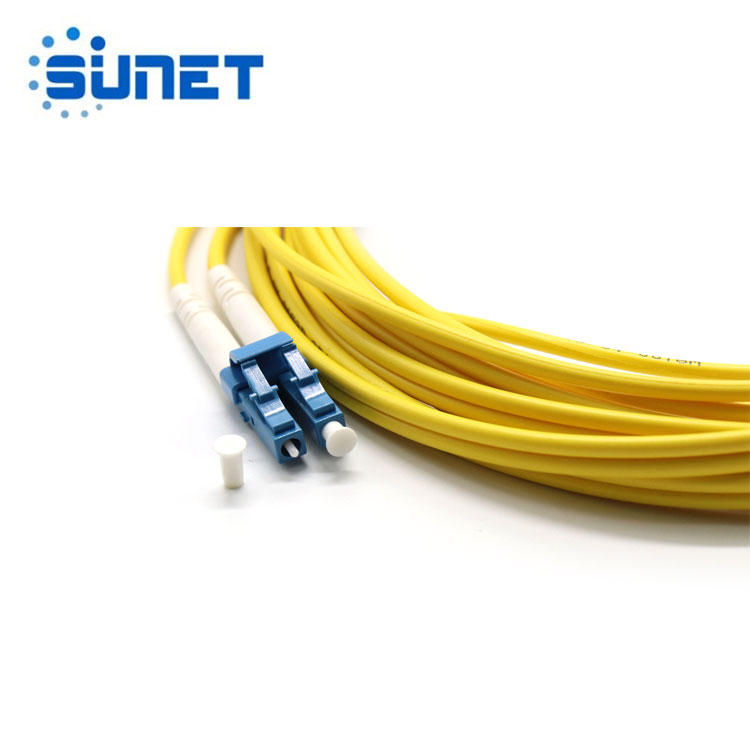

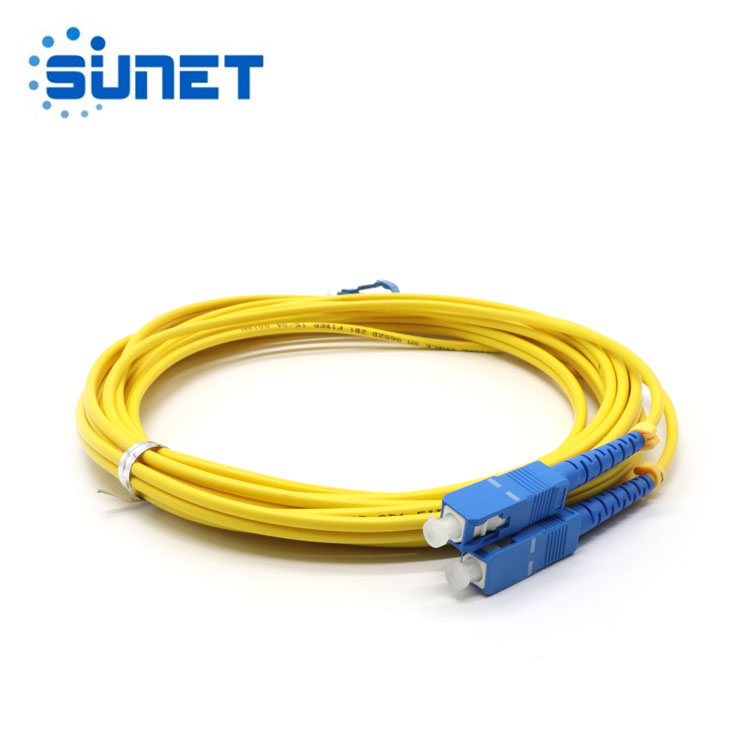

SC/UPC To LC/UPC Fiber Optic Patch Cords SM G652D Duplex 3.0mm 3M

    Buy cheap SC/UPC To LC/UPC Fiber Optic Patch Cords SM G652D Duplex 3.0mm 3M from wholesalers

    Buy cheap SC/UPC To LC/UPC Fiber Optic Patch Cords SM G652D Duplex 3.0mm 3M from wholesalers
    • Buy cheap SC/UPC To LC/UPC Fiber Optic Patch Cords SM G652D Duplex 3.0mm 3M from wholesalers

    SC/UPC To LC/UPC Fiber Optic Patch Cords SM G652D Duplex 3.0mm 3M

    Ask Lasest Price
    Brand Name : SUNET
    Model Number : SNT01
    Price : USD1.08
    Payment Terms : L/C, D/A, T/T, Western Union
    Delivery Time : 5-10 days after receipt of payment
    • Product Details
    • Company Profile

    SC/UPC To LC/UPC Fiber Optic Patch Cords SM G652D Duplex 3.0mm 3M

    SC/UPC To LC/UPC Fiber Optic Patch Cords SM G652D Duplex 3.0mm, 3M


    Product Description


    Fiber Optic Patch Cord is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.


    Features

    1.Price-Competitive

    2.Low Insertion Loss & PDL

    3.Factory-terminated and Tested

    4.Fiber Options: G.652 /G.657/OM1/OM2/OM3 and PM Panda Fiber

    5.Connector Options: FC/SC/LC/ST

    6.Polishing Options: PC/UPC/APC

    7.Feature Connector with Ceramic Ferrules


    Applications

    1.Access Network

    2.Telecom/CATV Systems

    3.FTTX


    Specifications

    ParametersStandard Fiber Cable Assemblies
    Fiber TypeSM(G.652/G.657A)MM(OM1/OM2/OM3/OM4/OM5)
    Jacket MaterialsLSZH/PVC
    Connector TypeSC/LC/ST/FC
    Ferrule MaterialsCeramic
    Testing Wavelengths1310±30/1550±30nm850±30/1300±30nm
    Insertion Losss(dB)
    TIA/EIA-455-107
    ≤ 0.25dB
    (PC/UPC/APC)
    ≤ 0.3dB
    (PC/UPC)
    Return Loss(dB)
    TIA/EIA-455-107
    ≥50dB(PC/UPC)
    ≥60dB(APC)
    ≥40dB(PC/UPC)
    Exchangeability≤ 0.2dB
    Cable AssembliesPigtail/Simplex/Duplex/Fan-out Patchcord
    Operating Temperature (° C)-10~ + 70
    Storage Temperature (° C)-40 ~ +85
    Package1unit/bag
    *All values specified are with connectors.
