OEM White Fiber Optic Patch Cord For Access Network

    Buy cheap OEM White Fiber Optic Patch Cord For Access Network from wholesalers

    Buy cheap OEM White Fiber Optic Patch Cord For Access Network from wholesalers
    • Buy cheap OEM White Fiber Optic Patch Cord For Access Network from wholesalers
    • Buy cheap OEM White Fiber Optic Patch Cord For Access Network from wholesalers

    OEM White Fiber Optic Patch Cord For Access Network

    Ask Lasest Price
    Brand Name : SUNET / OEM
    Model Number : SC APC
    Certification : ISO9001 / ISO14001
    Price : USD 0.5-1 per piece
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000000 PCS / Month
    Delivery Time : 5 - 8 Workdays
    • Product Details
    • Company Profile

    OEM White Fiber Optic Patch Cord For Access Network

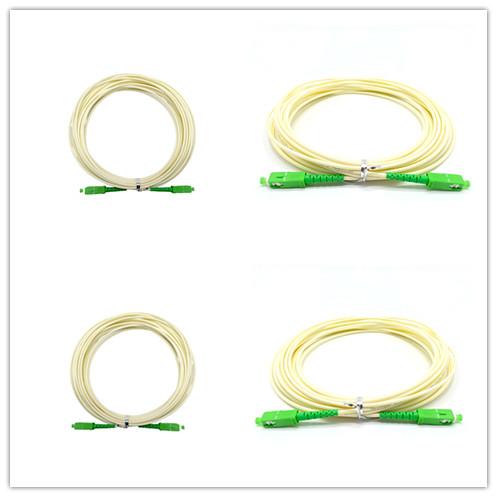

    SC APC G652D PVC 0.9mm 1m White FTTH Fiber Optic Patchcord


    Description


    Fiber Optic Patch Cord is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.


    Feature


    1. Price-Competitive


    2. Low Insertion Loss & PDL


    3. Factory-terminated and Tested


    4. Fiber Options:G.652/G.657/OM1/OM2/OM3 and PM Panda Fiber


    5. Connector Options :FC/SC/LC/ST/MU/DIN/SMA/E2000/MT-RJ/MPO/MTP


    6. Polishing Options:PC/UPC/APC


    7. Feature Connector with Ceramic Ferrules


    Application


    1. Access Network


    2. Telecom/CATV


    3. Systems FTTX


    Specification


    Parameters

    Standard Fiber Cable Assemblies

    Fiber Type

    SM(G.652/G.657)

    MM(OM1/OM2/OM3/OM4/OM5)

    Jacket Materials

    LSZH/PVC

    Connector Type

    FC/SC/LC/ST/MU/DIN/SMA/E2000/MT-RJ/MPO/MTP

    Ferrule Materials

    Ceramic

    Testing Wavelengths

    1310±30/1550±30nm

    850±30/1300±30nm

    Insertion Loss(dB)

    ≤0.25dB

    ≤0.3dB

    TIA/EIA-455-107

    (PC/UPC/APC)

    (PC/UPC)

    Return Loss(dB)

    ≥50dB (PC/UPC)

    ≥40dB (PC/UPC)

    TIA/EIA-455-107

    ≥60dB(APC)

    Exchange-ability

    ≤0.2dB

    Cable Assemblies

    Pigtail/Simplex/Duplex/Fan-out Patch cord

    Operating Temperature(°C)

    -10~+70

    Storage Temperature(°C)

    -40~+85

    Package

    1pieces/bag
