    Yellow Back Reflection Loss 0.3dB FTTH Patch Cord

    Ask Lasest Price
    Brand Name : SUNET/OEM
    Model Number : SUNET01
    Certification : ISO9001
    Price : USD 0.3-0.35 PER PCS
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 500000 pcs per month
    Delivery Time : 3-8 work days
    • Product Details
    • Company Profile

    Yellow Back Reflection Loss 0.3dB FTTH Patch Cord

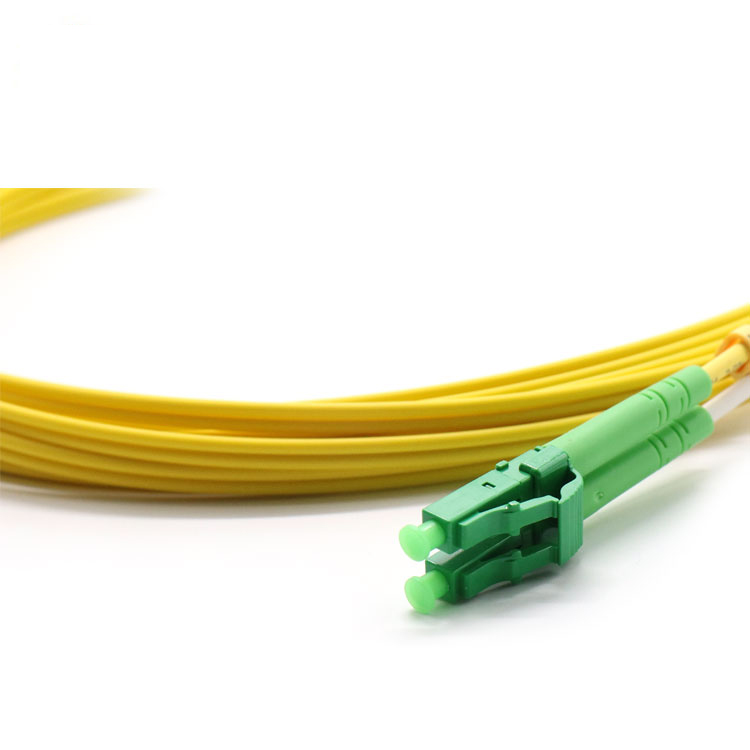

    Single Mode Duplex With Lc Apc Connector Fiber Optic Patch Cord


    Fiber Optic Description


    Fiber optic patch cords are available in all standard connector styles, all standard fiber types and all standard cable configurations to meet all your interconnection needs. They are available in any length.


    Patch Cord Features


    1.Good durability
    2.Good exchangeability
    3.High temperature stability
    4.Low insertion loss and back reflection loss


    Patch Cord Applications

    1.Optical Distribution Frame
    2.Computer Networks
    3.Fiber Optic Communication Systems
    4.Optical Access Networks
    5.Local Area Network
    6.Fiber Optic Sensors


    Patch Cord Order Information

    Cable Material: PVC, LSZH (LSOH), OFNR
    Cable Diameter: 3.0mm, 2.0mm, 0.9mm, 3.0*2.0mm, 5.0*2.0mm..
    Fiber Type: SM 9/125um, MM 50/125um, MM 62.5/125um, 10G OM3(50/125um)
    Polishing: PC, UPC, APC.
    Length: 0.2m, 0.3m,.... 100m

    Patch Cord Technical specifications


    Parameters

    Standard Fiber Cable Assemblies

    Fiber Type

    SM(G.652/G.657)

    MM(OM1/OM2/OM3/OM4/OM5)

    Jacket Materials

    LSZH/OFNR/PVC

    Connector Type

    FC/SC/LC/ST/MU/DIN/SMA/E2000/MT-RJ/MPO/MTP

    Ferrule Materials

    Ceramic

    Testing Wavelengths

    1310±30/1550±30nm

    850±30/1300±30nm

    Insertion Loss (dB)

    ≤0.25dB

    ≤0.3dB

    TIA/EIA-455-107

    (PC/UPC/APC)

    (PC/UPC)

    Return Loss (dB)

    ≥50dB(PC/UPC)

    ≥40dB(PC/UPC)

    TIA/EIA-455-107

    ≥60dB(APC)

    Exchange-ability

    ≤0.2dB

    Cable Assemblies

    Pigtail/Simplex/Duplex/Fan-out Patch cord

    Operating Temperature (ºC)

    -10 ~ +70

    Storage Temperature (ºC)

    -40 ~ +85

    Package

    1 pieces/bag

    All values specified are with connectors
